Apeks MTX-R Sidemount Regulator Set

The MTX-R sidemount set is a super tough, rugged, high performance, go anywhere sidemount regulator configuration designed to meet the rigours of cold water and extreme sidemount diving. The MTX-R is highly reliable and also very easy to service out in the field which makes it an ideal choice for the expedition and exploration diver.

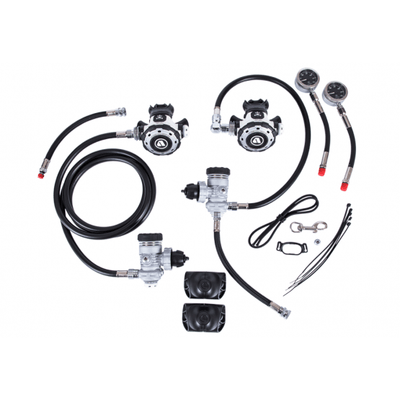

Kit Contents

2 ea. DPT DIN 1st stages with 5 port swivel turrets.
2 ea. MTX-R second stages.
210cm double swivel hose.
61cm double swivel hose
2 ea. 25cm length MP inflation hoses (one for buoyancy system, one for drysuit)
2 ea. TEK pressure gauges with 18cm hoses
1 ea. 90° elbow fitting
1 ea. bungee necklace
1 ea. bungee clip
1 ea. stainless steel bolt snap
2 sets of short exhaust ports
Regulator bag
Setup illustration, CD manual and quick start guide
NOW INCLUDES THE NEW BUNGEE CONNECTOR SYSTEM

Technical Specifications

Connections	DIN only
Type of first stage	Over-balanced diaphragm design, environmentally sealed
Body Type	Forged first stage body with heat exchanging ribs for maximum thermal performance.
Number of HP ports	2 (7/16" UNF) per first stage
Number of MP ports	5 (3/8" UNF) per first stage
Environmental Dry Kit	Standard
First stage exterior	Satin chrome
Orientation	Convertible LH or RH
Coldwater Use	Yes
Type of second stage	Pneumatically balanced
Opening Effort Control Knob	No
Integrated Venturi Lever	No
Mouthpiece	Comfo-bite™
Exhaust tee	Diver Changeable - comes with 2 sets
Heat Exchanger for freezing resistance	Yes
Hose type	Rubber breathing hoses and braided flexi inflator hoses
Nitrox compatible	Yes to 40% O2 when new, out of the box / Can be O2 cleaned to 100%.
Gauge face	Tempered glass
Over-pressure relief on gauge back	Yes
