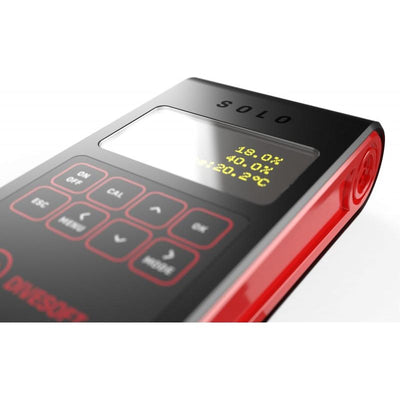

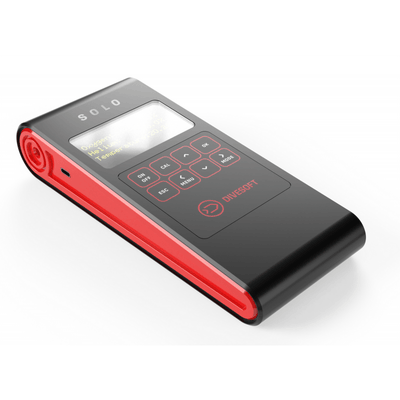

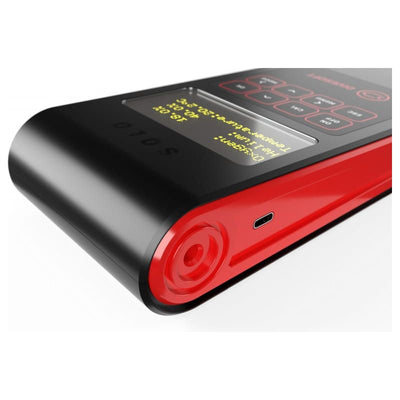

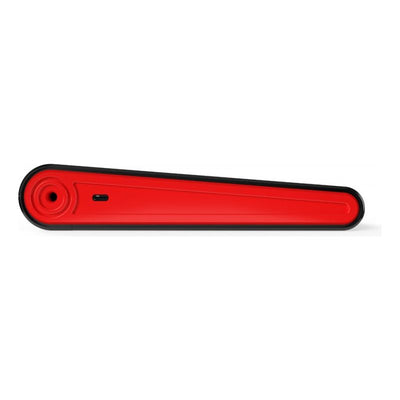

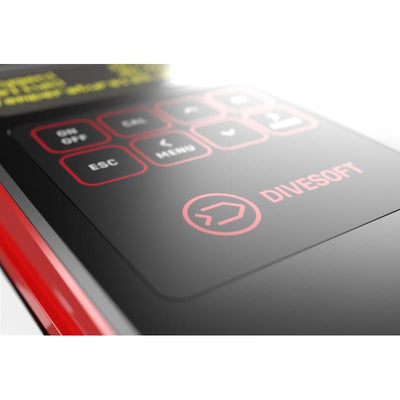

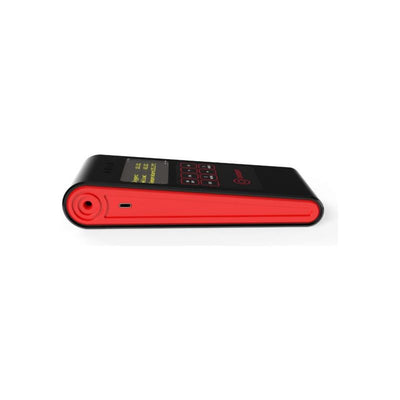

Divesoft SOLO O2 Analyzer

Analyzer SOLO O2 is the ideal partner for all recreational NITROX divers. Analyzing is really easy, just turn on with one press and measure. Easy automatic calibration. Analyzer SOLO O2 has the same durable polymer body as its brother Analyzer SOLO, allowing to get your device upgraded to a trimix analyzer by getting a helium sensor added. Divesoft's high quality analyzer finally available for recreational divers. Intuitive controls, 2 display screens and advanced Software. Easy to read O2% content including MOD for preset ppO2, date and temperature. MOD values for PO2 at 1.2, 1.4, 1.6 bar for immediate reference. Simple automatic calibration.

Analyzer SOLO O2 provides real time gas calculations for the most accurate cylinder labeling. Built in Gas mixing software.

TECHNICAL SPECIFICATIONS

Dimensions: 85 × 205 × 40 mm (31/4 × 77/8 × 11/2 inches)
Weight: 332 g (without packaging and accessories)
Oxygen concentration measurement range: 0 to 100%
Operating pressure:

700–1100 millibars (20– 32 inches Hg), which corresponds to a standard atmosphere at 0 to 3000 m (0–10000 ft)
Mixture Pressure:

Corresponds to an ambient pressure in the range of 700–1100 millibars (20– 32 inches Hg), which corresponds to a standard atmosphere at 0 to 3000 m (0–10000 ft)
Nominal gas flow rate: 0.2 l / min
Measuring cycle: 200ms
The connection dimensions of the sampler: Standard for a DIN valve (EN 144-2) for 200/300 bars (G 5/8 thread). Samplers with a connection to any standardized or common valves are available on request or as optional equipment
Oxygen sensor: R22 S (Molex connector)
Easy to replace O2 sensor
Oxygen sensor life expectancy: 2 years
Replaceable battery: Through authorized service center
Battery: 210 measurements or 7 hours of continuous operation
Warranty: 24 months, 12 months on battery and oxygen sensor
Charging and programming: USB-C
Charging time: 3–4 h
Display: OLED
Body: ABS-PC

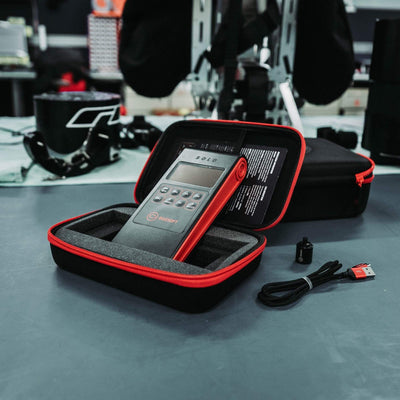

Package contents:

Analyzer SOLO O2
USB-C cable
Simple flow limiter

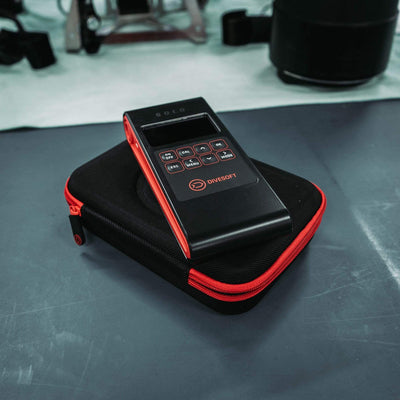

Case
