Mares Regulator Abyss 22 Navy II (including Octo)

The Abyss 22 Navy II scuba regulator is the answer to any challenge. Carefully designed, this regulator guarantees top performance and reliability under the toughest conditions, even when diving under ice!

Key Benefits

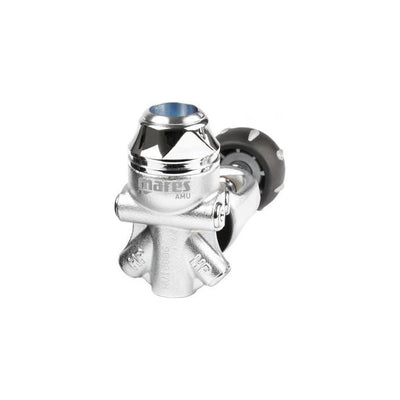

1st stage

Hi flow dfc port
Pre-oriented ports
Cwd oil kit
Us navy approved

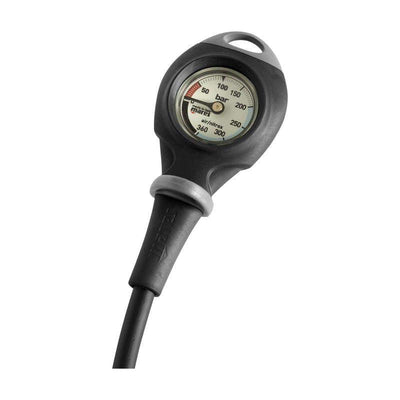

Console included (may vary)

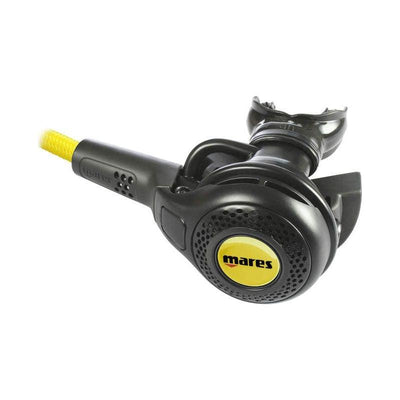

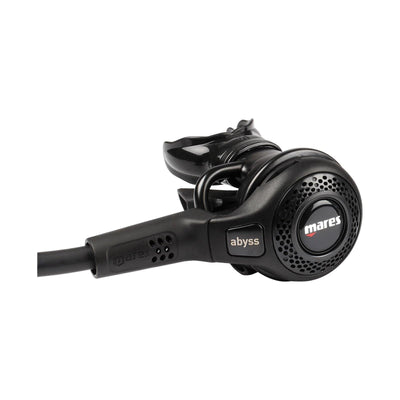

2nd stage / Octo

Vad system
Mesh grid
Fluoropolymer resin finish
Rubber hose
Ideal for extreme cold water

Key Features

Code: 416171
Material: Metal Technology
First stage: Balanced Diaphragm
Lightweight yoke: Yes
High pressure ports: 2 HP 7/16” UNF ports
Low pressure ports: 1 LP 1/2” UNF port, 3 LP 3/8” UNF ports

Mesh Grid - Patented design which reduces the impact of water flow onto the second stage diaphragm, thus eliminating free flows even in strong currents.

All Metal Technology - Outstanding mechanical reliability and high thermal conductivity make our metal 2nd stages extremely long lasting and ideal for cold water dives. The high thermal conductivity of metal reduces also the dry mouth feeling during the dive.

VAD - Vortex Assisted Design - The air bypass tube delivers air to the mouthpiece creating a swirling vortex with a low pressure area in the center that keeps the diaphragm down during inhalation, for very sensitive and easy breathing at all depths.

DFC - Dynamic Flow Control - Minimizes intermediate pressure drop during inhalation thus maximizing gas delivery, especially under extreme conditions.

Mares Regulator Abyss 22 Navy II Regulator Set (including Octopus)
