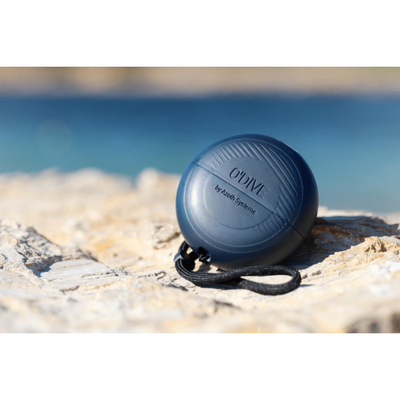

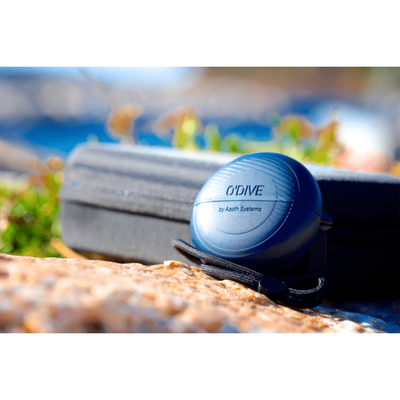

O-Dive Portable Doppler

Take the guesswork out of your decompression!
Here at ScubaDiving Gear Store we work closely with various technical dive instructors and have had many years of experience dealing with decompression diving and tuition. We've found, as you might have, that decompression time can wildly vary between diver depending on computer, decompression model, conservative settings, and gas choices. We've found that users often go with either manufacturers settings, what their mates use, or simply what gets them out of the water quickest. We loved it so much we have a unit at the shop we use for our own dives and Deco Courses.

Now for the first time, a reliable, tested and proven tool exists to allow you to verify your decompression choices. The O-dive allows you to do a series of post-dive scans that are uploaded to the Azoth server for analysis, results come back and are presented in a clear and easy to read graph which will indicate the scan results.

We loved it so much we have a unit at the shop we use for our own dives and Deco Courses.

Practical-How-Does-It-Work:

Go Diving
Punch your dive into your computer (or upload from Shearwater)

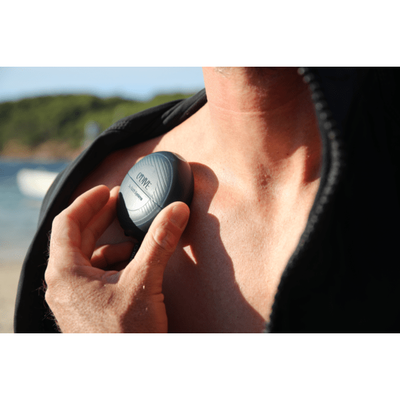

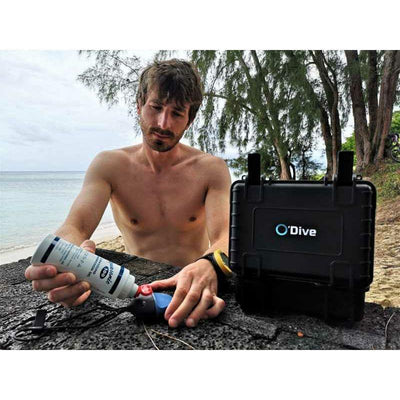

Scan your Left and Right Clavicle
Repeat Scan after 30min
Receive results from Azoth Servers
Examine Result and simulate dive with different parameters
Change GF/Gas/Stops till parameters are safer
Go diving again with chosen changes and repeat above.

Features:

Compatible with Shearwater Computers, import your dive directly from your computer.
Wireless Charger
Phone Integration

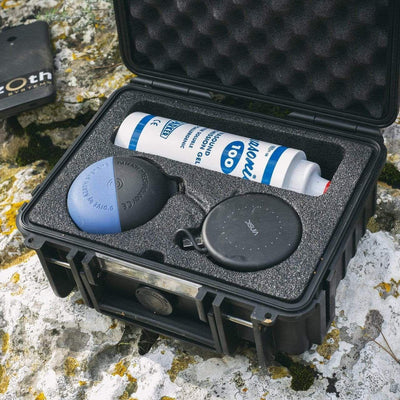

Microbubble Ultrasound Doppler

Usage & Accounts:

Unlimited user accounts
Free and unlimited dive analyses for the owner of the system
(and a person of his or her choice)
For additional users:

A total volume of 30 dive analyses are offered with the sensor,
then dive analysis from £3 per analysis

Available in 4 versions:

Sport (40m)
Advanced (60m)
CCR (85m)
Technical (125m)

O-Dive Sport (40m)

O’Dive Sport helps you control your diving quality and safety towards decompression sickness and the prevention thereof.

O’Dive Sport is suitable for diving with air or nitrox on open circuit to 40 meters depth.

O-Dive Advanced (60m)

O’Dive Advanced is similar to the Sport, but with a deeper max depth.

O-Dive CCR (85m)

O’Dive CCR is designed to analyse dives up-to 85m conducted on either open or closed circuit, using; Air, Nitrox, Oxygen, Trimix and mixes, and should be considered the entry level scanner for the Technical diver.

O-Dive Technical (125m)

O’Dive Full Technical is designed to analyse dives up-to 125m conducted on either open or closed circuit, using; Air, Nitrox, Oxygen, Trimix and Heliox mixes.

User Manual

Download here

Connecting Shearwater

Developed over 10 years of research

O’Dive is the result of knowledge acquired over 10 years of research and development by Azoth Systems in collaboration with laboratories, diving doctors, physiologists and diving safety professionals.

About thirty experts from various backgrounds contributed to this knowledge. It is based on the analysis of hundreds of thousands of dives and the development of a technology shaped by years of user testing.

This momentum has given rise to 4 research theses, numerous scientific articles and several patents.

1. O’Dive technological innovation : the missing element in decompression

Azoth Systems has developed an innovation that – for the first time in the world – allows scuba divers to personalize their diving practice by taking into consideration the gas microbubbles detected in their venous system after diving.

This innovation is the result of the knowledge developed during 10 years of Research and Development by Azoth Systems in collaboration with research laboratories, diving doctors, physiologists and safety professionals in scuba diving.

About thirty experts from various backgrounds contributed to this knowledge. It is based on the analysis of hundreds of thousands of dives and the development of a technology shaped by years of user testing. This momentum has given rise to 4 research theses [1] [2] [3] [4], numerous scientific articles (e.g. [5] [6] [7]) and several patents.

What does the O’Dive innovation bring to scuba diving?

A tool that allows the divers to know themselves better, to measure the quality of their decompression and the efficiency of selected procedures and to improve their safety.

2. The context and the initial motivation of Azoth Systems

What is the adequation between the decompression models and the divers’ physiology if we consider the fact that most of the decompression sickness accidents (DCS) do occur in spite of the compliance with the ascension procedures?

The observation is that any decompression algorithm is only a mathematical representation of the physiological phenomenon.

Most of the accidents occur in spite of the respect of diving procedures: the divers have correctly followed the indications provided by their diving computers or their decompression tables. This situation, familiar to experienced divers, is revealing the fact that all the diving procedures (stops duration, ascent rate, gas breathed) are not necessarily adapted to all types of divers. Therefore, divers must question the relevance of the procedures they use. Given the number of possible settings of decompression algorithms, it must be noted that the divers have no tangible criteria to assess the level of suitability of the procedures to their individual physiology.

Figure 1 – Illustration of the decompression stops durations for a 30’/30m dive for seven computer models, in accordance with the conservatism levels (Source : thesis for the national instructor title – S. Le Maout, 2015)

The figure above illustrates the fact that for an identical dive of 30 minutes at 30 meters breathing air – and based on the same “0” conservatism level of dive computer, the divers will be offered 12 to 21 minutes of decompression stops, depending on the computer model. Note that this is a minimum range. In practice, divers may be offered 8 to 50 minutes of stops if the full range of conservatism levels available is taken into consideration (conservatism levels at -2 to +5).

In this context, O’Dive’s interest is to provide divers with a criterion for assessing the quality of their practice, thus giving them the possibility to better control it.

In technical diving, the variability of proposed decompression procedures is even greater (see Figure 2). The majority of rebreather or Trimix divers use the Bühlmann type decompression algorithms where the ascension profile is guided by Gradient Factors (GF).

This modelling do offer a high level of flexibility but, without tangible criteria for the management and planification of the dives, the dispersion of the proposed ascension profiles is very large.

Figure 2 – The diversity of depths of proposed first dive stops and of decompression duration depending on GF for a Trimix dive of 25’ at 70m

3. O’Dive’s underlying approach: understanding the risk of DCS for a better prevention

It remains difficult to completely identify the causes leading to pathogenic bubbles. These causes are often not quantifiable, most of them are interdependent and many – especially those occurring at a microscopic level – remain unknown.

To answer the question of DCS risk prediction, modern scientific techniques use a probabilistic approach involving mathematical models. Those models integrate the quantifiable parameters contributing to the risk – or at least correlated with it – to output the bounds of risk of the accident.

With its expertise in decompression modeling [5], Azoth Systems has developed a series of predictive models called BORA (for Bubble Occurrence – Risk Attrition) to report the results observed in multiple databases. Big databases (defence, offshore) collected in the framework of collaborations and service delivery were analysed during almost 10 years: dive parameters of hundreds of thousands of dives (air, nitrox, trimix, open-circuit and closed-circuit Heliox), the bubble dynamics (Doppler measurements) of several thousand of these dives and the hundreds of accidents they led to, have been studied to calibrate these models [6] [7].

What main results does this data bring to light?

First of all, they corroborate the previous results and allow to better define their shapes. For the air diving, the risk increases with the depth and the duration of dive and decreases when the total decompression time (stops) increases, according to a severity index Is as represented by the graph below (Figure 3). This result is obtained by the statistical analysis based on logistic regression of three defence databases accumulating more than a million of dives and about 300 cases of accidents (French Navy, US Navy and DRDC

Figure 3 – The probability of DCS (PDCS) as a function of severity index Is taking into the account the depth, the duration of dive and the total decompression duration. The examples of parameters are presented as dive duration/maximal depth for the square air dives.

The same trends were proved for deep dives (DRDC database and COMEX heritage), allowing to extend the construction of severity index Is to multi-gas setting, with:
- A major interest in the introduction of Helium in the breathing gas composition
- The interest of the oxygen-enriched breathing gas in the decompression phase

both well characterised with respect to the risk of the accident (logistic regression).

The pic of vascular microbubbles, observable in precordial or subclavian zones after dive, is the essential data for prediction of risk : accounting for it allows to refine the DCS probability curves (Figure 4). Indeed, the presence of microbubbles acts as an amplificator of risk associated to the dive severity [7]: for dives with depths and durations necessitating decompression stops (i.e. dives on and above the security curve of no decompression) the observed risk ratio between a dive without or with few vascular microbubbles and a dive with a high bubble grade is about 10. This result is based on the analysis of a DRDC database including dive profiles, bubbles measurements in precordial and subclavian zones and accident status (more than 8000 exposures in hyperbaric chamber with more than 100 DCS).

Figure 4 – DCS probability laws as a function of the dive severity index (Is) for 5 levels of post-dive microbubbles (measurements 30’ after surfacing)

Doppler bubble measurements in subclavian zone characterize the amplification of the risk better than precordial measurements [7]
The depth of the first stop and the ascent rate to the first stop depend on the type of breathed gas (more or less rich in Helium) and on the exposure severity (COMEX heritage). The introduction of deep stops finds its limits: Azoth cannot evaluate the benefits of deep stops when they are not in this heritage.

4. How does the O’Dive application operate? What information is provided to divers?

After each dive followed by a microbubble measurement, and based on the dive profile imported into the application, O’Dive provides divers with an information on the quality of their desaturation.

There are ideally two series of measurements, the first 30’ after surfacing* and the second 30′ later, within the optimal time interval for the bubble peak detection.
*For dives with a helium fraction higher as the nitrogen one, we recommend to perform the first series of measurements as soon as possible after surfacing, without, however, making additional efforts due to precipitation.

This indication is expressed by means of a quality index (QI) with a value ranging between 0 and 100%. It reflects a relative risk.

How is the quality index QI computed?

The QI index takes into account both the dive severity (Is index, reflecting the physiological stress associated to the dive parameters) and the level of microbubbles measured after dive using the vascular Doppler sensor.
The 100% value is a risk reference level (less than 5 per 10,000). It corresponds to the level of physiological stress experienced by a diver during a no-decompression air dive not generating any vascular microbubbles.

The QI index is computed using a simple formula

QI=100-(Sc+Bc)

with:

Sc (Severity component, ranging between 0% and 100%): specific to the dive (exposure, decompression procedure, breathed gases), it reflects the Is index
Bc (Bubbles component, ranging from 0% to 40%): specific to the subject’s response to the dive

As the QI index decreases, the DCS risk increases. Three zones have been identified to guide the user:

Statistical analysis shows, with a good confidence level, that a QI index lower than 75% is associated with a risk higher than 2 per 10 000 and a QI index lower than 50% is associated with a risk greater than 1% (lower bound of the risk).

Figure 5 – Examples of IQ index for three dives (50m, 51m and 40m).

Details of the result

When the quality index does not reach 100%, the diver can access detailed information.
The decompression optimisation margin (i.e. the complement of the QI to 100%) can be visualized splitted in two components: the severity of the dive profile (Sc) and the production of vascular microbubbles (Bc).

Detail of a bargraph’s components

Note that two different dives of the same diver, with very different bubble levels, can lead to similar QI values (for example: a dive with moderate severity and many bubbles vs. a dive with high severity and few bubbles) .

5. What other feature does O’Dive offer?

The O’Dive application is divided into 4 versions: Sport, Advanced, CCR and Technical. They enable the management of all kind of dives: from open-circuit air dives to closed-circuit (rebreather) dives with Trimix diluent up to 125 meters (details available here: https://o-dive.com/commercial-offers/). In addition to the results dynamically computed for each dive, O’Dive allows to visualise the simulated effects of the modification of a set of dive parameters on the QI index.

In the Sport and Advanced versions, the diver can quantify the benefits of the following options:

Extend the duration of the last stop
Plan the decompression using Nitrox richer in oxygen, with a possibility to set the value up to 100%O2
Plan the use of Nitrox as bottom gas, setting the value of %O2 up to 1.4 bar of Pp O2
Set the Low and High Gradient Factors (GF) being guided by the application towards the optimal choices of the first stop and the total decompression time.

Example of 31m Air/Nitrox dive, result and planification

The CCR and Technical applications offers an extended list of functionalities, including the following simulation options:

Extend the duration of the last stop
Set the PpO2 value of the high set-point (closed circuit decompression)
Plan the open circuit decompression using Nitrox richer in oxygen, with a possibility to set the value up to 100%O2
For air dives, plan the use of Trimix as bottom gas. After setting the value of %He, the application gives the optimal value of %O₂ depending on CCR or OCR mode
Change the Trimix composition by setting different %He in CCR or OCR mode.
Set Low and High GF being guided by the application towards the most suitable values, reflecting the choice of the first stop and the total decompression time

Example of 74m CCR dive, result and planification

Dive after dive, a customised model that is specific to each diver is refined to reflect as accurately as possible the added value of each of the above options on the safety.

For this purpose, the quality index QI was designed in such a way that when it increases by 33%, the diver’s safety level is multiplied by 10. This security improvement is shown in the simulation window.

6. What are the limitations of the information provided by the system?

It is important to clearly define the area of application of O’Dive, which, as should be noted, does not fall into the category of medical devices. Some information, such as medical information, is voluntarily not considered by the system.
The consideration of medical information or observations that are part of the regulatory visit process remains essential and must be separated from the use of the product.

The objective of the O’Dive system is, it should be reminded, to assess the quality level of a practice with respect to the quality index QI taking into account:

the severity index of diving exposure “Is”, the risk factor related directly to dive parameters;
the quantity of vascular microbubbles detected after the dive, acting as a risk amplifier.

Studies carried out using some of the best documented databases illustrate the relevance and meaning of this approach to DCS prevention. O’Dive is therefore a very useful tool, allowing divers to get to know themselves better and to improve their practice with regards to the risk of decompression sickness
