Santi Heating System Battery

Specification

Modern technology and electronics will allow from now on to enjoy uninterrupted and unflagging heat comfort during the dive time. Blue Power battery allows 2 levels of heating and independent, non-invasive self-replacement of the power cable when necessary.

What characterizes it and distinguishes it from other batteries available on the market:

maintaining a stable voltage level, thus maintaining a constant heating temperature throughout the battery's run time.
two levels of constant voltage at the output set by the user as needed are used:
for typical heating power need – app. level 11V (like other heating batteries)
for higher heating power need – app. level 12V
new ergonomic design of E/O CORD connector with two LEDs
Audible and luminous indication of the battery mode was used, along with an indication of low charge level.
Ergonomic shape of the case with added anti-slip elements useful on the surface.
Possibility of simple replacement of the E/O CORD cable in the selected length without necessity of service.
failure-free piezoelectric button to switch on/off the battery.

Battery parameters 28 Ah

battery capacity : 28 Ah
battery energy : 397 Wh
output voltage on 1st stage : 11 V
output voltage on 2nd stage : 12 V
nominal voltage on battery : 14,8 V
type of cell : LI-ION
height : 338 mm
maximum diameter : 87 mm
construction material : Poliacetal / POM / Delrin®
length of E/O cord : 60 cm
maximum power of the heating set : 200 W
full charge time : 14 h
maximum diving depth : 100 m (tested on 130m)

Battery parameters 14 Ah

battery capacity : 14 Ah
battery energy : 198 Wh
output voltage on 1st stage : 11 V
output voltage on 2nd stage : 12 V
nominal voltage on battery : 14,8 V
type of cell : LI-ION
height : 206 mm
maximum diameter : 87 mm
construction material : Poliacetal / POM / Delrin®
length of E/O cord : 60 cm
maximum power of the heating set : 160 W
full charge time : 7 h
maximum diving depth : 100 m (tested on 130m)

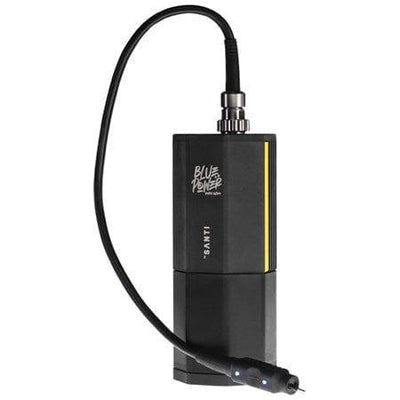

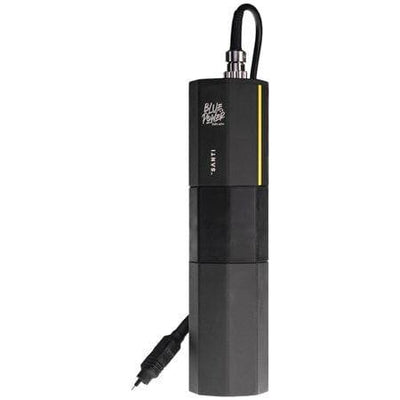

Santi Blue-Power Heating Battery
