SF-Tech Heating Pads

The SF Tech heating system is based on a modular principle that makes it easy to remove or replace heating elements. This system uses heated pads made of breathable fabric that are connected to each other through an electrical wiring. The modular system makes it possible to replace pads or wire, quickly and without having to change the undergarment.

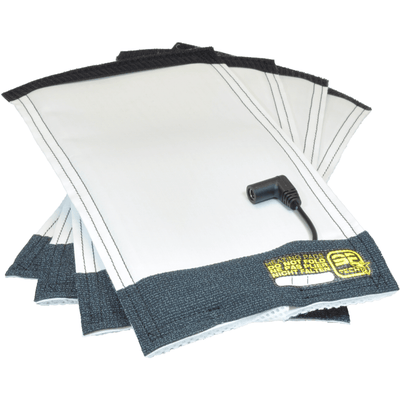

The heating elements have a physical dimension of 33x16cm (13”x6.3”) and provide a maximum power of 10W each, or a total of 40W for the four elements. Each element is designed to be fitted in an internal pouch of the SF Tech sweater or the SF Tech vest. The pads are held in place by a velcro fastener and can be easily removed if necessary. The main distribution cable goes through the lining of the undergarment.

The pads are connected to the main distribution cable by a small waterproof connector. For maximum flexibility and strength, the insulation of the electrical wires is made of silicone and the cables are covered with a nylon braided protective sheath. The connection with the heating valve is made using a waterproof push lock connector, to facilitate connection while gearing up and ensuring a stable connection during the dive.

Characteristics

Breathable material
Velcro fastening
Waterproof connectors with heating pads
Waterproof push lock connector with the heating valve
Silicone electrical insulation
Nylon braided protective sheath

Technical Data

Dimensions (per pad): 33x16cm
Supply voltage max: 12V
Output power max (per pad): 10W @ 12V
Output power max (4 pads): 40W @ 12V
Operating current max: 3.3A @ 12V
Approximate autonomy (23.8 Ah): 7h15
