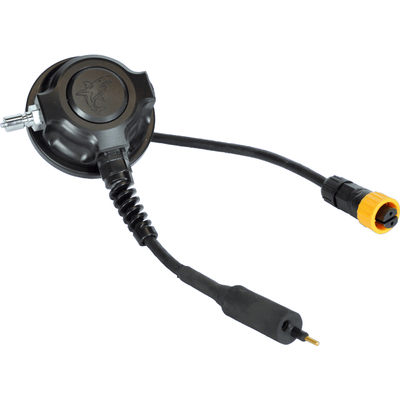

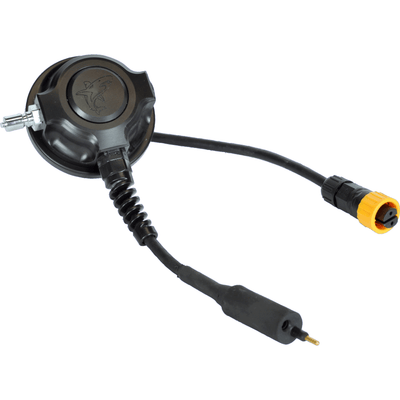

SF Tech Heating Valve

Specifications

Low profile, the SF Tech heating valve is constructed to be flatter than a standard inflator while providing E/O connectivity for a heating system. Made of Delrin, a material with excellent impact resistance, the valve is extremely robust and durable.

Equipped with a standard inflator connector, it can be used directly without the need for an adapter. The position of the air intake is reversible to ensure optimal hose routing. The valve is compatible with Apeks inflators.

The electrical connection between the battery and the heating valve is made using a waterproof E/O connector that can be disconnected underwater. Inside the suit, the connection to the heating system is made using a waterproof push lock connector.

Key Features

Low profile
Small and streamline profile avoiding any extra bulk.
Reversible
The air intake can be swapped side for better hose routing.
Apeks compatible
The valve can be mounted on any Apeks pads.
Waterproof connector
The E/O cord is designed to be plugged and unplugged underwater.
WAM Coaxial Cord
The E/O connector is compatible with all batteries

Characteristics

Low profile
Ability to reverse the position of the air intake
Compatible with Apeks inflators
Waterproof E/O battery connector can be unplugged underwater
Waterproof push lock connector for connection to the heating system

Technical data

Machined in POM (Delrin)
Standard Apeks quick disconnect pin
Ø5.8mm E/O cord
Standard cable length of about 50cm
