ECS 7L / Left - £283.00
- ECS 7L / Left - £283.00
- ECS 7L / Right - £283.00
- ECS 7L / Full Set - £550.00
- ECS 10L / Left - £304.00
- ECS 10L / Right - £304.00
- ECS 10L / Full Set - £600.00
- ECS 12L Convex / Left - £312.00
- ECS 12L Convex / Right - £312.00
- ECS 12L Convex / Full Set - £615.00
- ECS 12L Concave / Left - £320.00
- ECS 12L Concave / Right - £320.00
- ECS 12L Concave / Full Set - £620.00

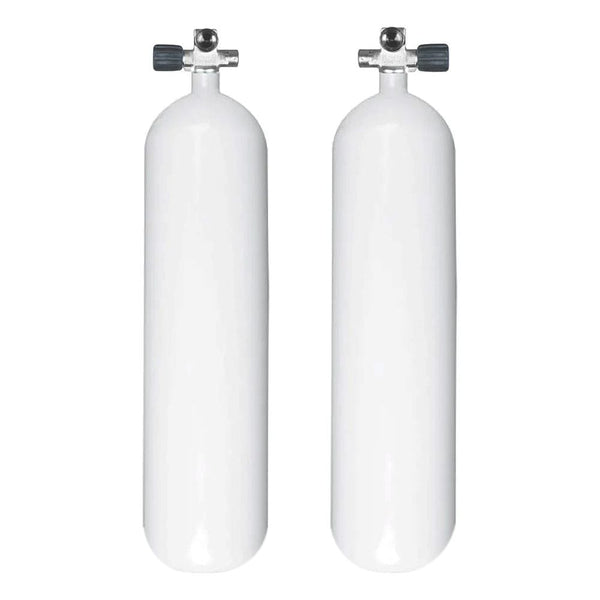

BTS STEEL Sidemount Cylinder Set
PRODUCT DETAILS
Our BTS Sidemount Cylinders are available either as a set or as single cylinders, in three sizes: 7L, 10L and 12L

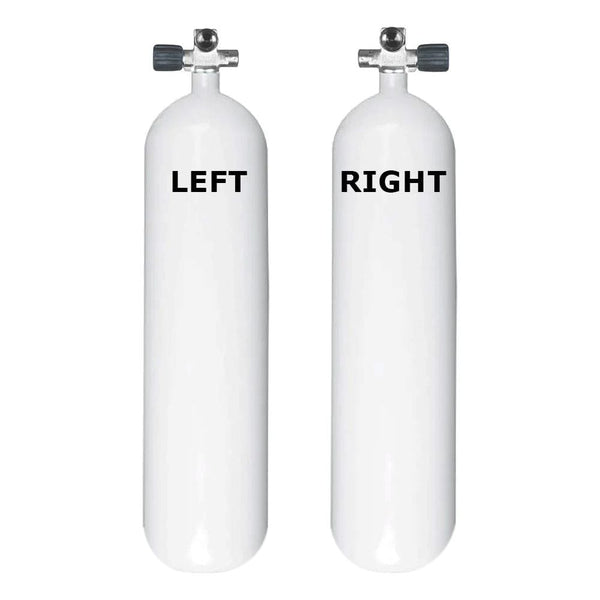

Each steel sidemount cylinder comes equipped with either a left-hand or right-hand expandable valve, making them ideal for sidemount divers.
You can find the detailed specifications for each cylinder size below to help you choose the perfect match.
All cylinders are available as a set or individually for the left or right side.
Cylinder Specs:
ECS 7L
- 7 Litre
- 230 Bar Steel Cylinder
- Length 590mm
- Diameter 140mm
- Weight 7 Kgs
- Buoyancy of -0.95 Kgs in Sea Water & -1.7 Kgs in Fresh when full.
ECS 10L
- 10 Litre
-
230 Bar Steel Cylinder
- Length 595mm
- Diameter 171mm
- Weight 12 Kgs
- Buoyancy of -2.13 Kgs in Sea Water & -3.21 Kgs in Fresh when full.
ECS 12L Convex
- 12 Litre
-
230 Bar Steel Cylinder
- Length 690mm
- Diameter 171mm
- Weight 14 Kgs
- Buoyancy of -2.23 Kgs in Sea Water & -3.52 Kgs in Fresh when full.
ECS 12L Concave
- 12 Litre
-
230 Bar Steel Cylinder
- Length 685mm
- Diameter 171mm
- Weight 15 Kgs
- Buoyancy of -2.97 Kgs in Sea Water & -4.27 Kgs in Fresh when full.
